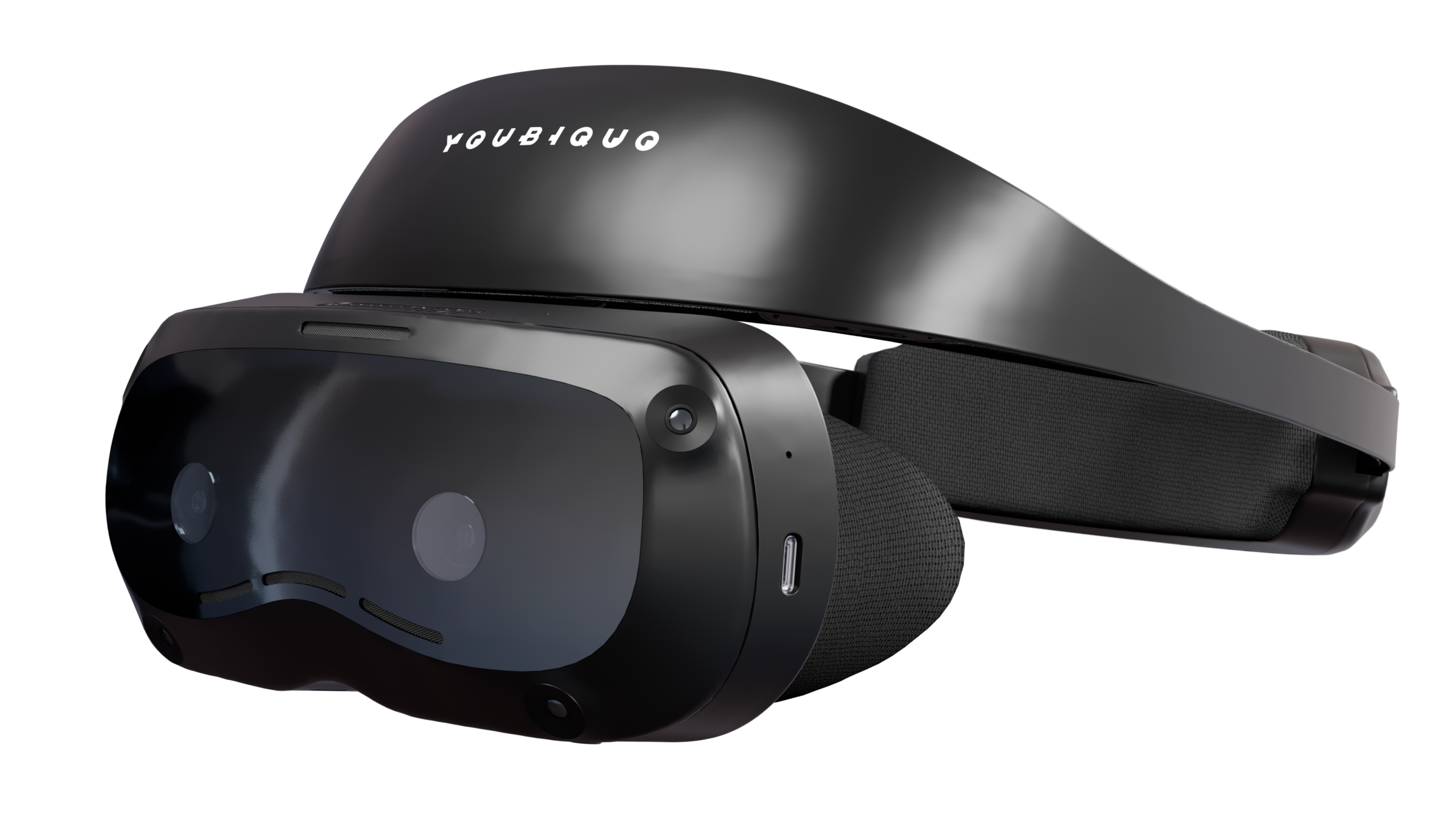

Leonardo XR - Visor for immersive training in manufacturing

Leonardo is an advanced XR headset designed for immersive and interactive training, thanks to its See-Through vision capability, which combines Virtual Reality (VR) with Extended Reality (XR) experiences. This versatility allows for the creation of fully immersive training scenarios in VR or the integration of workers into real environments, where they can interact with physical objects using advanced features such as real-time vision and tracking.

Technical Features

Processor & Display

• Qualcomm XR2 7nm
  CPU Kryo 585 max 3.1GHz
  GPU Adreno 650 max 587MHz

• Storage (ROM) 128 GB
  Memory (RAM) 8 GB

• 3-axis gyro + 3-axis acc. sensor (supports 1KHZ sampling)
  Proximity sensor

• Double display 2560*2560 up to 90Hz

• 4 global shutter cameras, 2 RGB cameras for Video See-through

• 5500 mAh battery, QC3.0 charge

Interaction

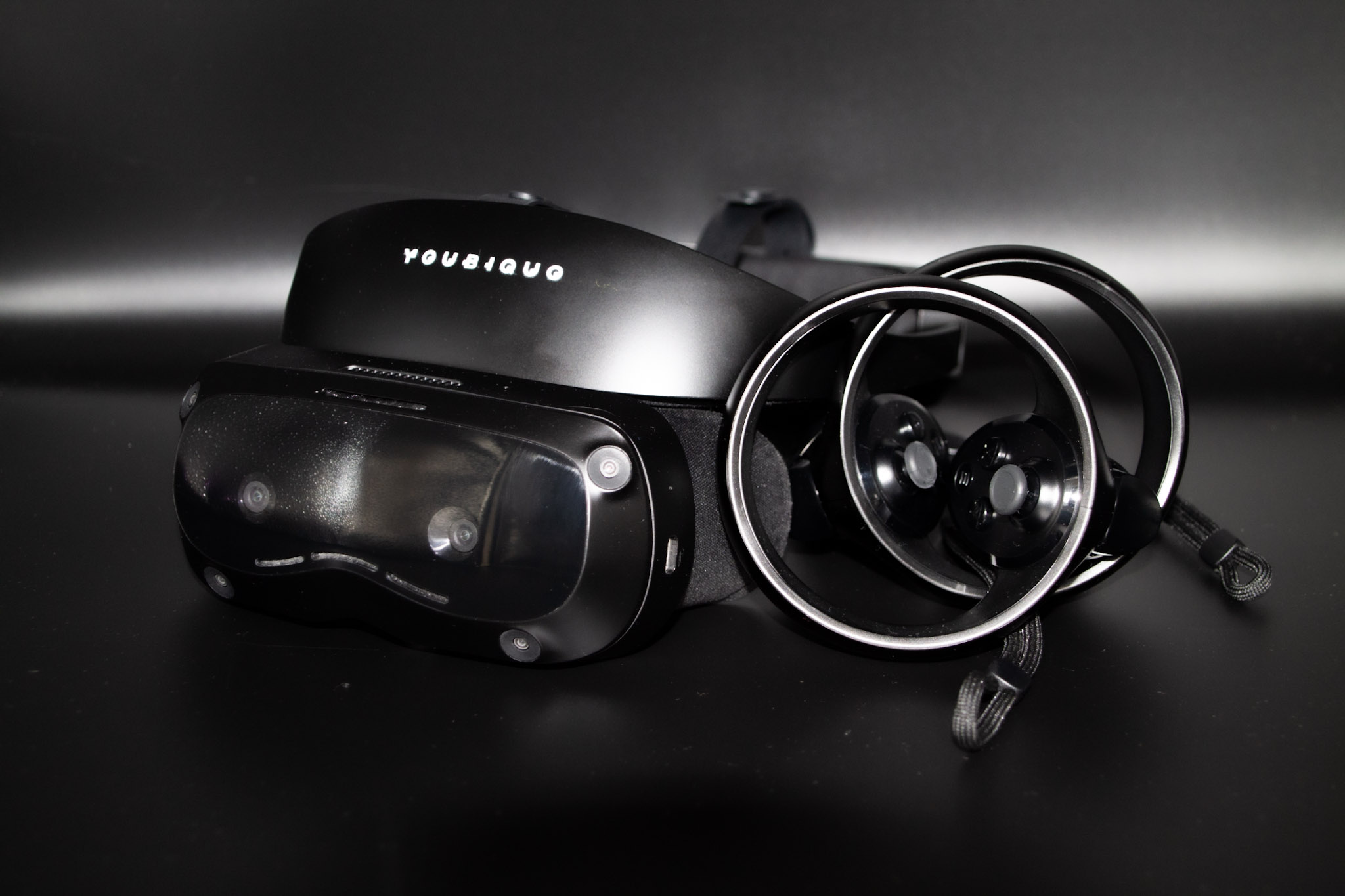

• Dual 6DoF controllers, positioning accuracy <10mm, ultra-low latency < 20ms

• Hand Tracking Degree of Freedom 6DoF

• DisplayPort output via USB-C

Connectivity

• Wi-Fi 6
  @2.4GHz, 802.11 b/g/n/ax, 2x2 MIMO
  @5GHz, 802.11 a/n/ac/ax, 2x2 MIMO

• Bluetooth 5.0 4

Audio

• Bult-in dual stereo speakers

• Built-in dual microphones

• Type-C earphone support

• Bluetooth earphone support

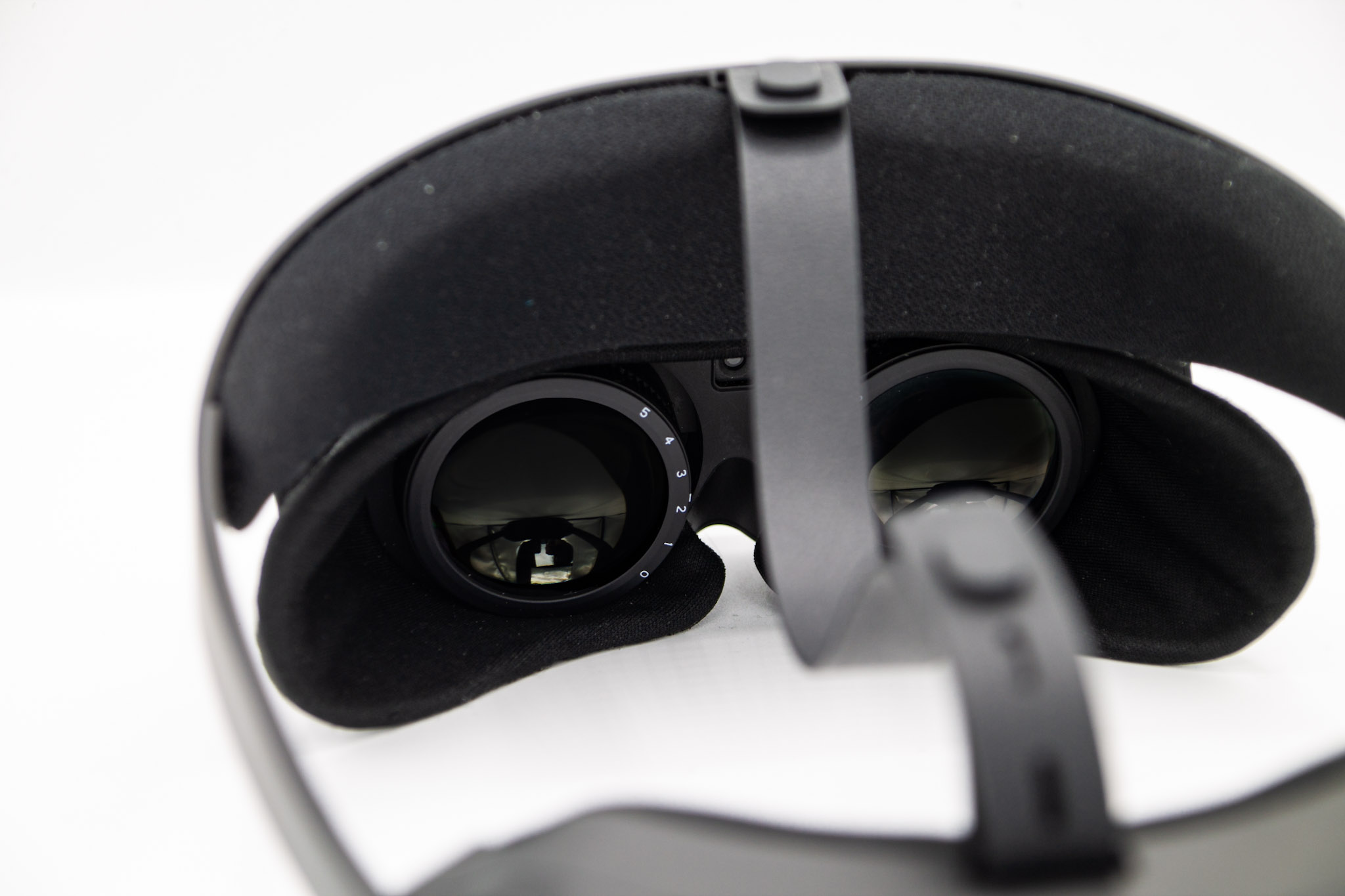

Ergonomy

• FoV 95°-105°
  IPD Adjustment 59-68mm
  Myopia adjustment: 0-5,00 deg./eye

• Magnetic snap-on detachable cushion
  Flip-up Range 90°

• Weight 436 g
