ENVIRONMENTAL TEST LABORATORY SERVICES

• The heating/cooling speed of our Climate chamber and the speed of the Thermal shock tester’s elevator are both outstanding in the industry

• Our equipment conform to both industry and international standards

• Our Laboratory is equiped with an industrial gate and is located in an easily accessible location.

• UV lamp in the chamber -> UV simulation tests are available

• Climate tests in humid or zero humidity environment

• Next to our Climate Lab is our Dimensional Laboratory

  (GOM, CMM, X-ray, CT)

• Skilled engineer workforce

• Automotive - electric industrial and sector neutral standards eg: MSZ EN 60068-2-30, VW PV 1200

Thermal shock chamber

• Inside dimensions: 1000x1342x1020 mm (width/depth/height) 1368 litre

• Max weight: 100 kg

• Temperature range:

  • (-75 °C) – (+180 °C)

• Heating/cooling speed 15k/min, linear between (-60 °C) – (+160 °C)

• Power: 57,1 kW

• Peripherals

  • Left side - 80 mm diameter

  • Right side - 150 mm diameter

  • Sunlight simulation possibility on the top of the device 500 x 595 mm

  • UV Lamp for degradation tests

  • 4 movable thermometer in the chamber,

    one controls the temperature

• The humidification and the dehumidification can happen at the same time -> high accuracy

  • Humidity 10–98% to 10–95 °C ±3–±5% accuracy

  • dew-point: +4 °C–94 °C

• PIN locking for unwanted access

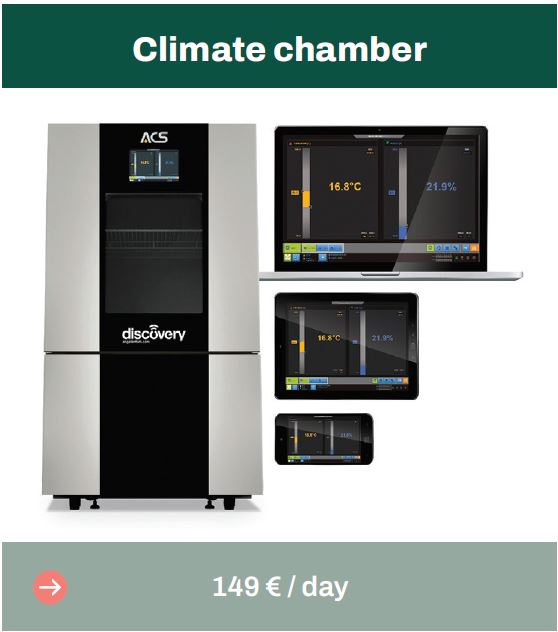

Climate chamber

Automotive - electric industrial and sector neutral standards
eg: IEC 6008-2-14 Na, ISO16750

• Inside dimensions: 614x500x425 mm (width/depth/height) 130 litre basket

• Max weight: 50 kg

• Temperature range:

  • Upper chamber (+70 °C) – (+220 °C) (+/-1°C)

  • Lower chamber (-80 °C) – (+100 °C) (+/-1°C)

• Cooling type: Water cooling

• Peripherals: 95 mm diameter

• Power: 15,1 kW

• Cooling/heating performance

  • Cool chamber: Heating

    • 2,0 °C/min between -80 °C – +100 °C

  • Cool chamber: cooling

    • 4,7 °C/min between +100 °C – -80 °C

  • Heat chamber: Heating

    • 6,6 °C/min between +20 °C – +220 °C

• Due to the built in high pressure dehumidifier package,

  the desired temperature can be reached faster

• Elevator speed between chambers: 5-10 sec
