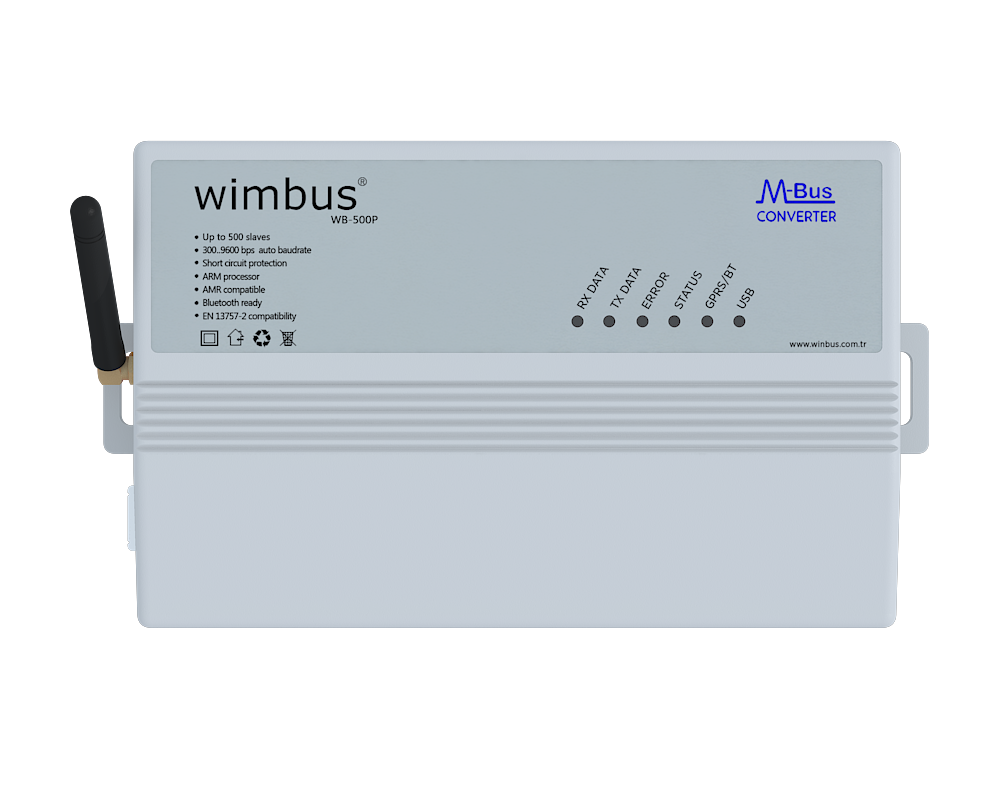

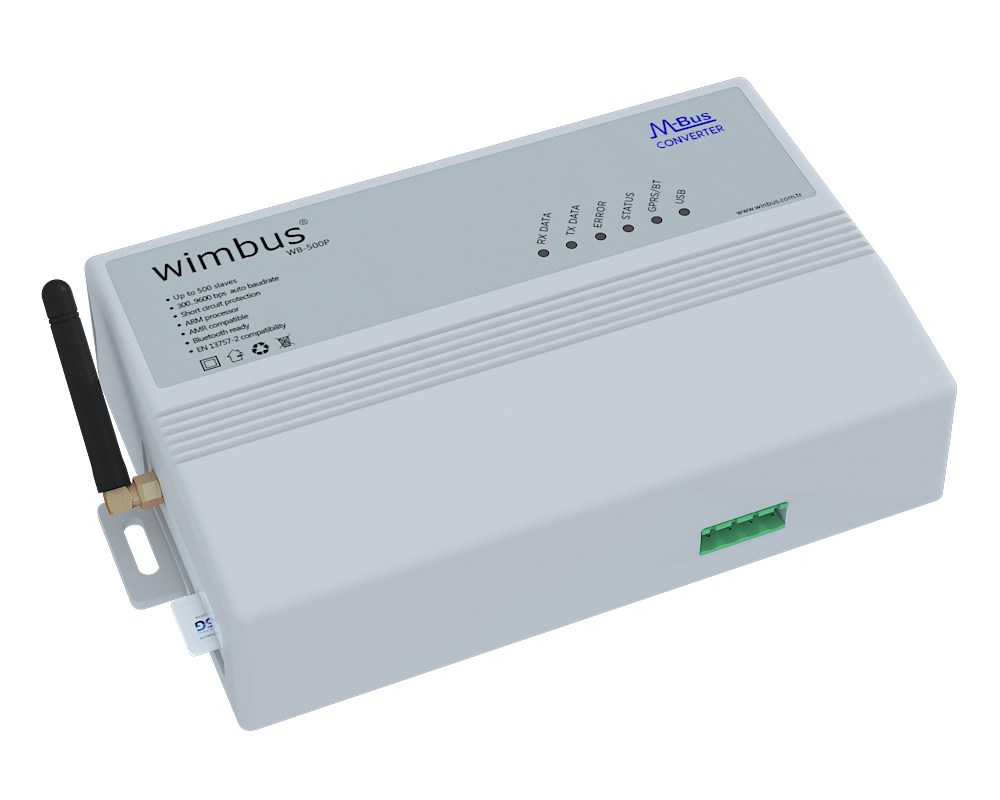

Wimbus M-Bus Remote Meter Reading

● Short-circuit and overcurrent protection
● Prevents device damage by disconnecting faulty output during short-circuit conditions.
● Enters sleep mode when not in use to reduce power consumption.
● Automatically detects connection speed between 1200bps and 9600bps.
● Wall-mountable design eliminates the need for a control panel.
● Manufactured in compliance with TS EN 1434 and TS EN 13757-2 standards.
● Supports all M-Bus (EN-1434) compliant meters.
● 32-bit ARM Processor
● Active software filtering minimizes susceptibility to electrical noise.
● Compatible with all M-Bus meter reading software via USB 2.0 VCP interface.
● Self-diagnosis feature
● Audible and visual alerts
● Wide input voltage range from 12V to 36V
● Constant M-Bus output voltage of 36V
● Maximum output current of 600mA
● Supports up to 500 meters
● Convenient usage with wall-mounted adapter
● Dual parallel M-Bus outputs for easy installation
● Integrated GPRS modem for remote meter reading
● External GSM antenna connectivity
● Operates with 900 MHz and 1800 MHz GSM operators
● Supports MQTT, HTTP, and TCP protocols
