TUBEINSPECT system

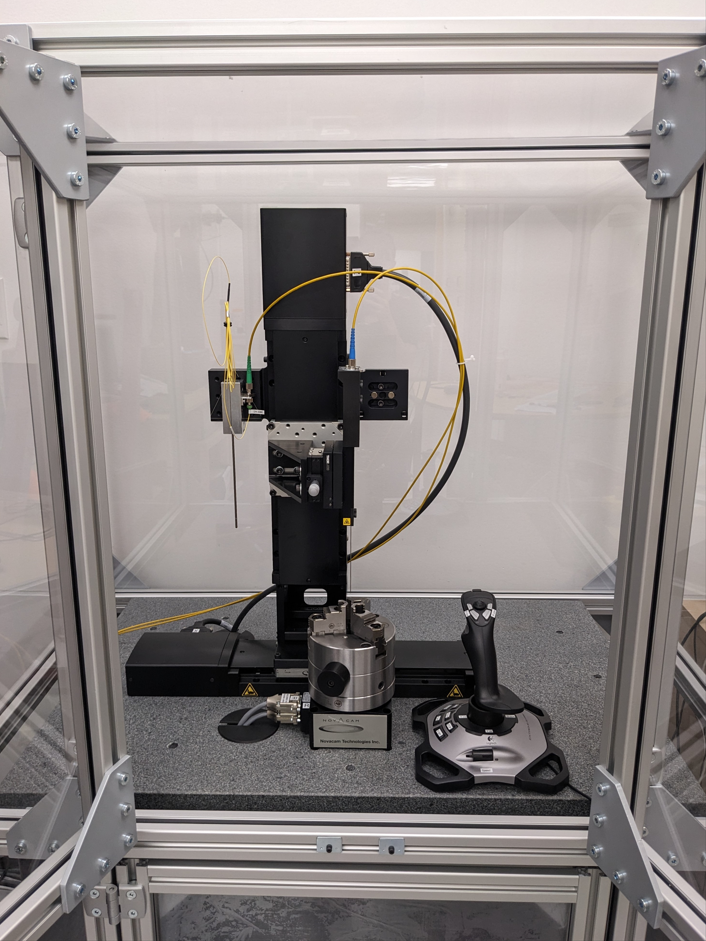

The NOVACAM TUBEINSPECT system is a modular, non-contact optical measurement system that provides micron-precision 3D measurements of tube, cylinder or barrel interiors and exteriors. Its small-diameter side-looking probe reaches inside tubes to acquire their complete inside geometry.

• Can measure every dimensional detail of tube inside diameter (ID) and outside diameter (OD), including undercuts, chamfers, threads, rifling, O-ring grooves, splines, lands, and edge breaks

• Enables fully configurable automated inspection

• Can measure dimensional or surface defects such as porosities, cracks, and scratches

• Can measure dimensions, roughness as well as thickness of semi-transparent coatings.
