RoboTend - automated robot feeder for CNC machines

Technical Specifications

RoboTend is a universal automation unit with changeable, universal parts tray. It is designed to accommodate all part types.

RoboTend has compact dimensions – 1000/1420/830 (H/W/L) mm

Mechanical or Air locking systems available. Airlocks runs on digital I/O.

Integrated compartment for controler box and for external PLC.

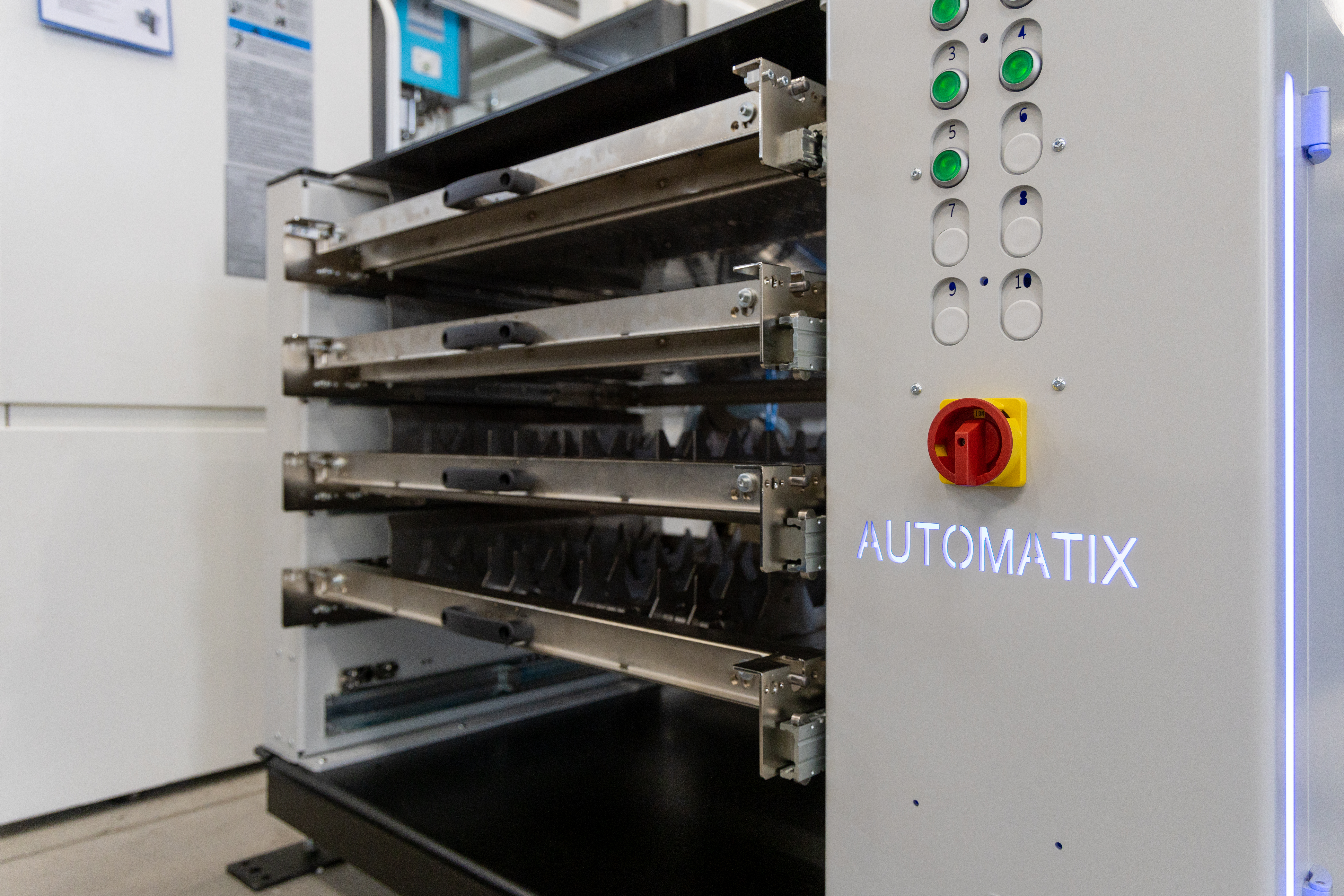

RoboTend tray is 600mm wide. 2 to 10 trays are available as standard. It can handle workpieces up to 160 mm in height with a tray load up to 100 kg.

Features

Compact robot work cell, perfectly made for a great number of different applications for processing of all kinds of materials.

RoboTend cell can be easily moved with a fork-lift. That ensures high mobility and possibility to use the product on several positions /production lines during the working day.

Quick change over time makes RoboTend suitable for small and medium production series.

RoboTend is universal for all types of robots. The mounting plate is angled at 45 degrees to maximize the reach of the robot.
